| SIO-741 |
SIO-742 |
SIO-743 |
SIO-744 |
SIO - 741 WESTWOOD PATTERN
(A) 28 X 1-1/2", 32/40H,
(B) 20 X 1.3/8", 20/20H,
(C) 26 X 1-1/2", 32/40H,
(D) 26 X 2 X 1-3/4", 32/40H,
(E) 24 X 1-1/2", 32/40H,
(F) 16 X 1-3/8", 20/20H
SIO-742 WESTRIC PATTERN
(A) 26 X 1-3/8, 32/40H,
(B) 20 X 1-3/4, 36/36H,
(C) 24 X 1-3/8, 32/40H,
(D) 28 X 1-3/8, 32/40H,
(E) 20 X 2.125, 20/20H
SIO - 743 ENDRIC PATTERN
(A) 26 X 1-3/8, 32/40H,
(B) 20 X 1-3/8, 28/28H,
(C) 26 X 2.125, 36/36H,
(D) 24 X 2.125, 36/36H,
(E) 20 X 2.125, 36/36H
SIO 744 ENDRIC PATTERN WITH DIMPLES
(A) 26 X 2.125-36H,
(B) 24 X 2.125-36H,
(C) 20 X 2.125-28/36H,
(D) 26 X 1-90-36H,
(E) 26 X 1-95-36H,
(F) 20 X 2.125-20/26H |
| |
 |

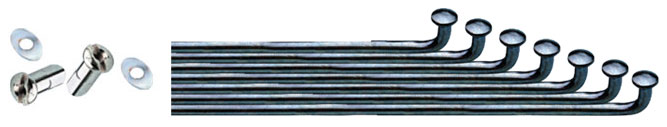

| SIO - 701 SPOKES WITH NIPPLE & WASHERS |
RAY ONS ET ECROUS DE RAYONS/ RADIOS Y CABECILLAS
|
| Wheel Size (A) |
Spoke Length in mm. |
| 28" |
305 to 308 |
| 26" |
271 to 300 |
| 24" |
251 to 270 |
| 20" |
191 to 250 |
| 18" |
171 to 190 |
| 16" |
135 to 170 |
|
| |
| SWG (B) |
Spokes With Steel Nipple & Washer |
Spokes With Brass Nipple & Washer |
Nipples |
| Steel |
Brass |
| |
NO: |
NO: |
NO: |
NO: |
| 2.02 MM(14) |
SP-1 |
SP-2 |
NP-1 |
NP-2 |
| 2.30MM (13) |
SP-3 |
SP-4 |
NP-3 |
NP-4 |
| 2.64MM(12) |
SP-5 |
SP-6 |
NP-5 |
NP-6 |
| 2.95MM(11) (BIG) |
SP-7 |
--- |
NP-7 |
--- |
| 2.95MM(11) (SMALL) |
SP-8 |
--- |
NP-8 |
--- |
| 3.25MM(10) |
SP-9 |
--- |
NP-9 |
--- |
| 3.65MM(9) |
SP-10 |
NP-10 |
--- |
|
| 4.05MM(8) |
SP-11 |
NP-11 |
--- |
|
|
|

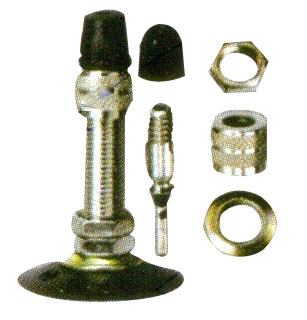

SIO - 754 TUBE VALVE
|
 |
 |
 |
 |
| SIO-754 (A) |
SIO-754 (B) |
SIO-754 (C) |
SIO-754 (D) |
(A) DUNLOP TYPE
(a) Plastic Cap
(b) Valve Cap
(c) Hexagonal Nut
(d) Round Washer
(e) Screwed Valve Body |
(B) AMERICAN TYPE
(a)Plastic Cap with Valve Core Opener
(b) Valve Core
(c) Hexagonal Nut
(d) Hexagonal Nut
(e) Bottom Round Washer
(f) Screwed Valve Body |
(C) DUNLOP TYPE
(a) Plastic Cap
(b) Valve Cap Nut
(c) Valve Core
(d) Serrated Nut
(e) Hexagonal Nut
(f) Bridge Plate
(g) Screwed Valve Body
| (D)ATOM VALVE
(a) Plastic Cap
(b) Valve Cap
(c) Screwed Valve Body
|
| |
|
